> GSD03

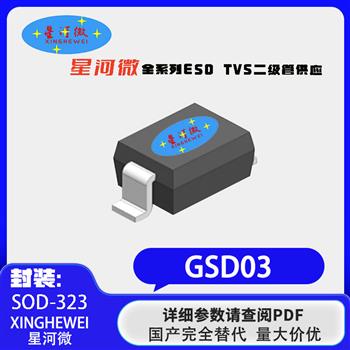

GSD03 Product Pictures
The picture is for reference only, the product is subject to the actual product
  • GSD03 Product Pictures

GSD03 SOD-323封装的单向ESD静电保护二极管

  • Product Name：GSD03
  • Brand： XINGHEWEI
  • Packing：卷带
  • Package：SOD-323
  • SPQ：2999
  • Channel:广东星河微
  • MOQ：20
Unit Price： ￥ 0.077292
Total： ￥ 1.55
Order Quantity：
- +
Stock：80000
For details, please consult: 0086 755-82955777   Or Submit Inquiry！

Price Gradient Price (13% Tax)

  • 20+ ￥0.077292
  • 200+ ￥0.065766
  • 600+ ￥0.05876
  • 3000+ ￥0.050285
  • Technical Parameter


Datasheet
No Data
  • Commodity Description

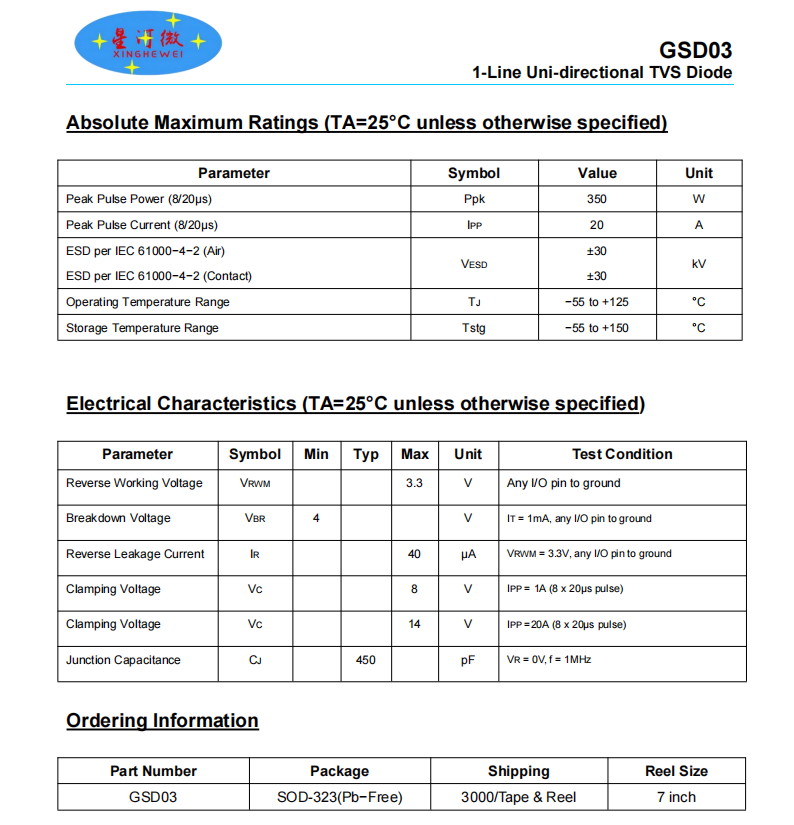

GSD03是一款单向TVS二极管阵列，采用先进的单片硅技术，具备快速响应时间和低ESD箝位电压特性，是保护敏感半导体元件免受损坏的理想解决方案。该器件符合IEC 61000-4-2（ESD）标准，支持±30kV空气放电和±30kV接触放电。采用无铅SOD-323封装设计，专为保护连接数据线和传输线的元件免受电压浪涌冲击而打造。

型号GSD03
封装SOD-323
极性Uni
PPK（W）350
IPP(A)20
VRWM(V)3.3
VBR(V)4
IR(uA)40
Vc(V)14
CJ(pF)450

可代替型号

型号封装
极性PPK（W）IPP(A)VRWM(V)VBR(V)IR(uA)Vc(V)CJ(pF)
H3V3HD3USOD-323
Uni300203.350.514200
HSD03SOD-323
Uni350203.344014450
KSD03SOD-323
Uni350203.344014450
PCESD3V3D3SOD-323
Uni300163.340.515200
PEDSD03CSOD-323
Uni250203.344010.9500
PESD3V3L1UASOD-323
Uni454.53.35.30.011134
PESD3V3L1UA-NSOD-323
Uni300203.34115200
PESD3V3L1UA-PSOD-323
Uni300203.34.80.515200
PESDHC3D3V3USOD-323
Uni280153.3519280
PESDNC3D3V3USOD-323
Uni35053.3518.8220
PJSD03WSOD-323
Uni3501341256.5150
PJSD03W T/RSOD-323
Uni3501341256.5150
PJSD03W_R1_00001SOD-323
Uni3501341256.5150
PSD03-LF-T7SOD-323
Uni50013.341256.5500
RLSD32A031VSOD-323
Uni300203.35115195
SD03SOD-323
Uni350203.344014450
SD03-MSSOD-323
Uni350203.344016450
SD03WSOD-323
Uni35025341013.5400
SD32303SOD-323
Uni30013.342007800
SEN3311D3SOD-323
Uni350203.344010.5450
STS321033U202SOD-323
Uni350253.34110200
TEP03SOD-323
Uni350203.344014450
TS0311LESOD-323
Uni350153.34.50.113500
UM3311WSOD-323
Uni500253.33.512075
YSESD3Z3.3T1GSOD-323
Uni350253420013450
