> HSD05

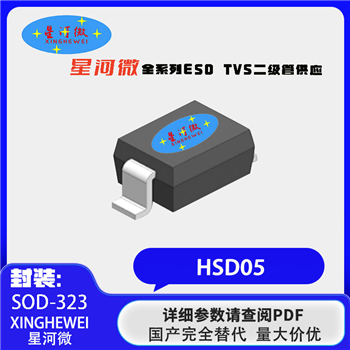

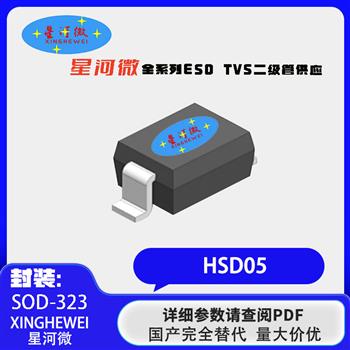

HSD05 Product Pictures
The picture is for reference only, the product is subject to the actual product
  • HSD05 Product Pictures
  • HSD05 Product Pictures

HSD05 SOD-323封装的单向ESD静电保护二极管

  • Product Name：HSD05
  • Brand： XINGHEWEI
  • Packing：卷带
  • Package：SOD-323
  • SPQ：
  • Channel:广东星河微
  • MOQ：20
Unit Price： ￥ 0.089383
Total： ￥ 1.79
Order Quantity：
- +
Stock：80000
Can Order
For details, please consult: 0086 755-82955777   Or Submit Inquiry！

Price Gradient Price (13% Tax)

  • 20+ ￥0.089383
  • 200+ ￥0.07006
  • 600+ ￥0.059325
  • 3000+ ￥0.052997
  • Technical Parameter
型号封装极性PPK（W）IPP(A)VRWM(V)VBR(V)IR(uA)Vc(V)CJ(pF)
HSD05SOD-323Uni35017561018300


Datasheet
No Data
  • Commodity Description

HSD05是一款单向TVS二极管，采用先进的单片硅技术，具备快速响应时间和超低ESD箝位电压，是保护电压敏感数据和电源线的理想解决方案。该器件符合IEC 61000-4-2（ESD）标准，支持±30kV空气放电和±30kV接触放电。采用超小型SOD-323无引脚封装设计，凭借紧凑体积和卓越的ESD浪涌保护性能，HSD05成为保护手机、数码相机、音频播放器等便携设备的优选方案

型号HSD05
封装SOD-323
极性Uni
PPK（W）350
IPP(A)17
VRWM(V)5
VBR(V)6
IR(uA)10
Vc(V)18
CJ(pF)300

可替代型号

型号封装极性PPK（W）IPP(A)VRWM(V)VBR(V)IR(uA)Vc(V)CJ(pF)
MESD05SOD-323Uni35025560.215180
ASH05CUSOD-323Uni3502056120300
AZ2215-01L.R7GSOD-323Uni808.556.12.5925
BSD05CSOD-323Uni3502456109.8200
BSD3A051VSOD-323Uni3501756117120
BV-D305ZBSOD-323Uni30617561018400
CESD323NC5VUSOD-323Uni3502256116.5135
CESD323NC5VU-MSOD-323Uni200205611890
CESD5V0D1-MSSOD-323Uni35017561018300
CESD5V0D3SOD-323Uni20010560.511160
CPDF5V0U-HFSOD-323Uni18015560.210130
CPEV5V0-GSOD-323Uni10055621680
DW05D-SSOD-323Uni5002556116150
ECSD05USOD-323Uni50023561022200
ESD05V32D-ASOD-323Uni32024561013.5350
ESD3Z5.0SOD-323Uni35017561018300
ESD3Z5.0T1G-MSSOD-323Uni35017561018300
ESD3Z5V0SOD-323Uni1749.455.6118.635
ESD5.0XM3SOD-323Uni927.556.2112.340
ESD5V0D3-MSSOD-323Uni35017561018300
ESD5V0D3QSOD-323Uni3002056.2115140
ESD5V0D3-TPSOD-323Uni3501556.2115.5350
ESDA051-1JYSOD-323Uni2502056.2312.8190
ESDA8V2-1JSOD-323Uni5002558.20.120210
ESDB5V0D3SOD-323Uni35024561013.5350
FESD5VMSOD-323Uni350556109.8150
FTV05UUSOD-323Uni35024561010.5350
GESDT5V0D31SOD-323Uni2201856111.6160
GSD05SOD-323Uni35017561018300
H5VHD3USOD-323Uni35025560.214185
HSD05SOD-323Uni35017561018300
JEU05D3SOD-323Uni3502256112180
KESD3Z5.0SOD-323Uni35017561018300
KESD5V0D3SOD-323Uni35017561018300
KPESD5V0S1UASOD-323Uni35017561018300
KSD05T1GSOD-323Uni35017561018300
KSD05SOD-323Uni35017561018300
LESD3Z5.0T1GSOD-323Uni25024561010.5350
LSD05T1GSOD-323Uni35024561014.5350
PE4205CS_R1_00001SOD-323Uni3372556113.5250
PEDSD05CSOD-323Uni2502056.21014.5350
PESD5V0L1UA,115SOD-323Uni423.556.4101225
PESD5V0L1UA-NSOD-323Uni3501756117120
PESD5V0S1UA,115SOD-323Uni8904756.20.319480
PESDA8V2-1JSOD-323Uni35025560.511160
PESDNC3D5VUSOD-323Uni35055619230
PG05HSUSC-RTK/HSOD-323Uni35024561014.5350
PJSD05WSOD-323Uni350156109.8100
PJSD05W T/RSOD-323Uni350156109.8100
PJSD05W_R1_00001SOD-323Uni350156109.8100
PTD322H120M5C36SOD-323Uni3602056117120
RLSD32A051VSOD-323Uni3002156515228
SD05SOD-323Uni35017561018300
SD05.TCTSOD-323Uni35024561014.5350
SD05CT1GSOD-323Uni3502456.21014.5350
SD05-MSSOD-323Uni35017561018300
SD05T1GSOD-323Uni3502456.21014.5350
SD05T1G-NSOD-323Uni3501756117120
SD05T1G-PSOD-323Uni35025560.511160
SD05WSOD-323Uni3502456114.5350
SD32305SOD-323Uni300156209.8600
SDD32A05L01SOD-323Uni32024561020350
SDT05DSOD-323Uni200245659.5350
SEN0511D3SOD-323Uni35017561018.6300
SESD05SOD-323Uni35024561013.5350
S-LESD3Z5.0T1GSOD-323Uni25024561010.5350
STS321050U182SOD-323Uni3502256112180
TEP05SOD-323Uni35017561018300
TESD05FUSOD-323Uni50024561013.5350
TPCESD5V0D3SOD-323Uni35020560.111100
TPESD05V32D-ASOD-323Uni35025560.511160
TPESD3Z5.0T1GSOD-323Uni35025560.511160
TS0511LESOD-323Uni35019560.124160
YSESD3Z05T1GSOD-323Uni35023561016300
